Beading and Flanging Machine

Model M and EL

Beading- and Flanging Machine Model MConstruction and Design

  • designed for beading, flanging and wire inserting works
  • advance of the top roller by means of threaded spindle
  • axially adjustable bottom roller
  • guidance of the workpieces through an adjustable stop

















Beading- and Flanging Machine Model ELAccessory

Set of beading dies standard equipment

2 pairs of wiring rollers BA + BC
1 pair of necking rollers F
1 pair of folding rollers ZA
1 pair of beading rollers S = 6 mm
1 pair of crimping rollers E = 30 mm
1 pair of swaging rollers V, 2,5 mm
1 pair of swaging rollers V, 4,0 mm
1 pair of swaging rollers V, 5,0 mm



Special dies

Beading rollers S, SK
Wiring rollers BA, BE, BM, BD
Elbow rollers KA, KB
Seaming rollers ZB
Cutting rollers M
Special dies on request



Optional Accessory

  • Electric motor drive,
    with geared motor 0,37 KW
    speed infinitely variable,
    right and left-hand rotation





centre to centre
distance between
rollers
Throat
depth
max. sheet
thickness
Working height
above table
Types
63 200 1,00 250 M
63 200 1,00

250

 EL

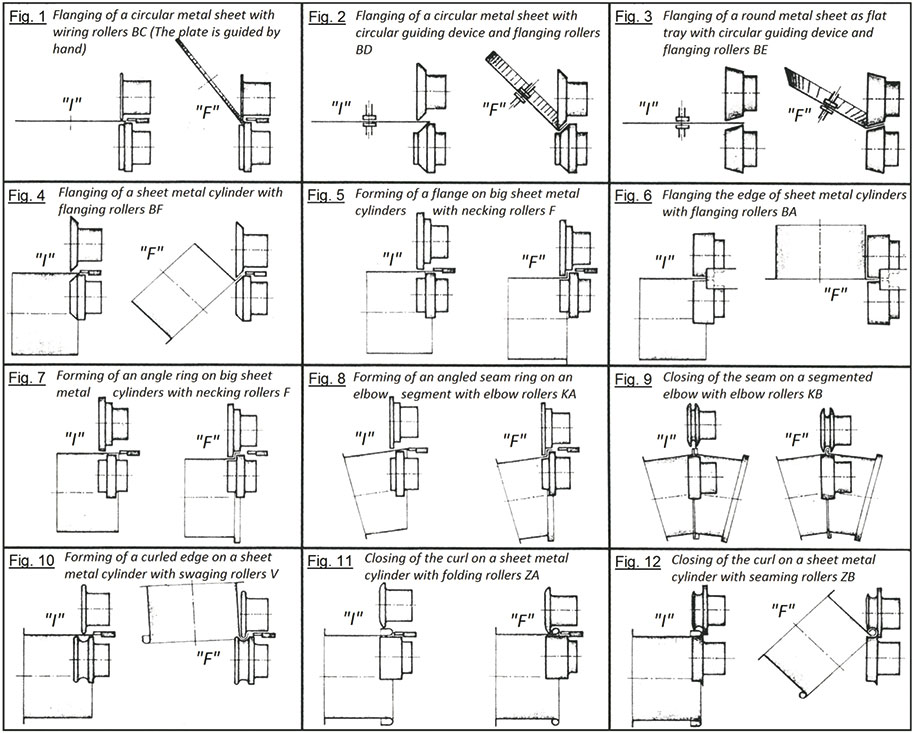

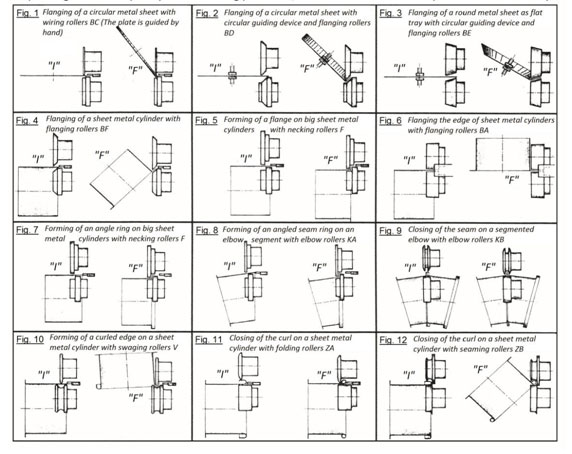

Examples of forming steps on bending machines



            I = Initial Position                                       F = Final Position


Depending on the complexity of the forming processes, one or more intermediate positions are necessary!



Chart Beading Machine





We reserve the right to change the illustrations and technical changes explicitly
For further informations and technical datasheets, do not hesitate to contact us.
